Specific Features
Accomplishment of “Tack Time Max 2.5sec” by possible both attachment and dispensing
with application of a dual head
Rapid job change through GUI
History management function with application of data base
Automatic alignment function with application of 3CCD Vision
Highly precise position control by Close Loop Control
History management based on data base
Wide compatibility with other companies’ dispensers
Application

Handset Camera Module Dispensing

Epoxy Molding of Condenser

Application of Sealant

IC Dicing Application

COG Bonding

Dam & Filling Application

Flip Chip bonding

Specifications

Width*Length*Height : 1,200*850*1,400mm

Input Power: Single-Phase, 220V AC

User Interface
Correction of X-Y Coordinates for dispensing and attaching with application of Vision System
Easy Model Replacement linked with the DB of the program
High Speed and High Accuracy using Linear & Servo Motor
Convenience with Easy User Interface
Concurrent Dispensing and Attaching by Dual Head Linear

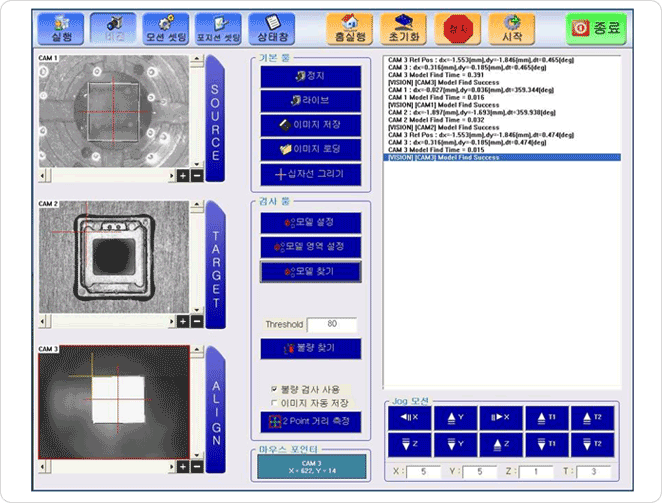

User Interface for Users’ Convenience_img

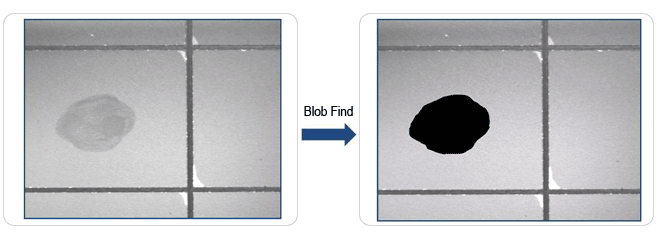

Determination of NG/OK of Glass by BLOB

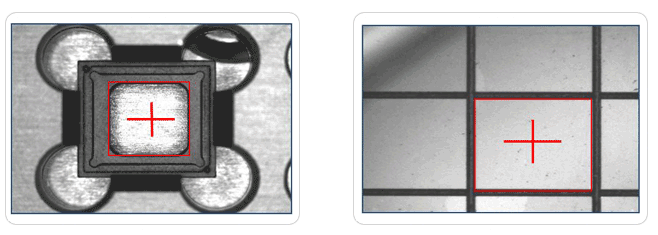

The feature to find out the model in case of quadrilateral setting The cross in the red quadrilateral is the center of the gravity in the quadrilateral.

Dispensing distance and glass attachment position are decided focused on the center of gravity.



The feature to find out the model in case of quadrilateral setting.

The cross in the red quadrilateral is the center of the gravity in the quadrilateral.

Original Video

Video found by BLOB
